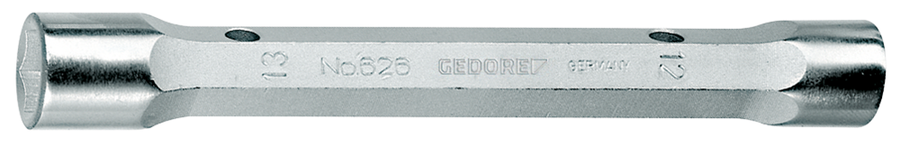

Product Overview
- With hexagon shaft and holes for turning, either with a spanner or a tommy bar (626 S / 26 RS-626 S, see table, please order separately)
- Sizes 6x7 and 8x9 mm with no hole
Technical Specifications
| Net weight [kg] | 0.145 kg |
|---|---|
| Total length [mm] | 145 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | chrome-plated |
| Drive connector hexagon [metric] | 14.0 mm |
| Width across flats 1 [mm] | 14 x 15 |
| Diameter 1 [mm] | 19.5 |
| Diameter of head 1 | 20 mm |
| Standard | similar to DIN 896 - Form A, ISO 2236, ISO 1085 |
| Insertion depth 1 | 11.5 mm |
| Insertion depth 2 | 13.0 mm |
| Diameter of head 2 | 21 mm |
| Recommended accessories | 626 S 1 Stepped pivot pin 190 mm long, Ø 3.7-7.0 mm |
