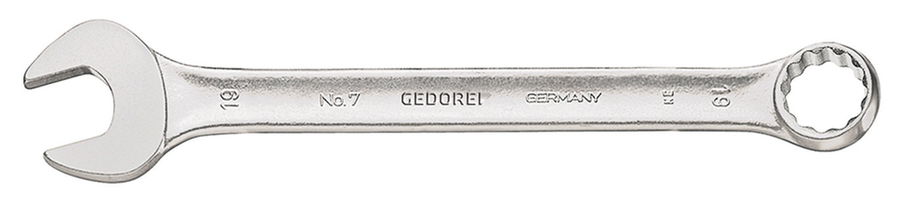

Product Overview
- Carefully forged and professionally machined
- Slim jaw and jaw walls make this spanner lighter overall
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Ring: 15° offset from shaft, with UD profile for gentle transmission of force
- Overloading indicated by deformation
- Secure grip thanks to hollow shaft - very ergonomic and handy
- Glare-free look due to matt chrome
- Designed for universal use
- Top-grade industrial quality for the hardest of continuous use
- Size 3 to 5.5 with hexagonal ring, from 6mm with UD profile
- * not standardised
Technical Specifications
| Net weight [kg] | 0.13 kg |
|---|---|
| Total length [mm] | 230 mm |
| Total width [mm] | 45 mm |
| Total height [mm] | 18 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 28.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 19 |
| Head height 1 [mm] | 11.5 mm |
| Standard | DIN 3113 - Form A, ISO 3318, ISO 7738 |
| Weight | 0.310 lbs |
| Width of head 2 [mm] | 42 mm |
| Head height 2 [mm] | 6.5 mm |
| Ring profile | UNIT-DRIVE |
| Mouth position 1 | 15° |
| Ring angle | 15° |
