Product Overview
- For use in almost all industrial manufacturing areas
- Automatic short-path actuation with tactile impulse and audible signal
- Lightweight plastic casing, made from high-grade, glass-fibre reinforced polyamide, with soft-grip handle
- Window with a magnifying-glass effect
- Locking button enables reliable locking of the torque setting

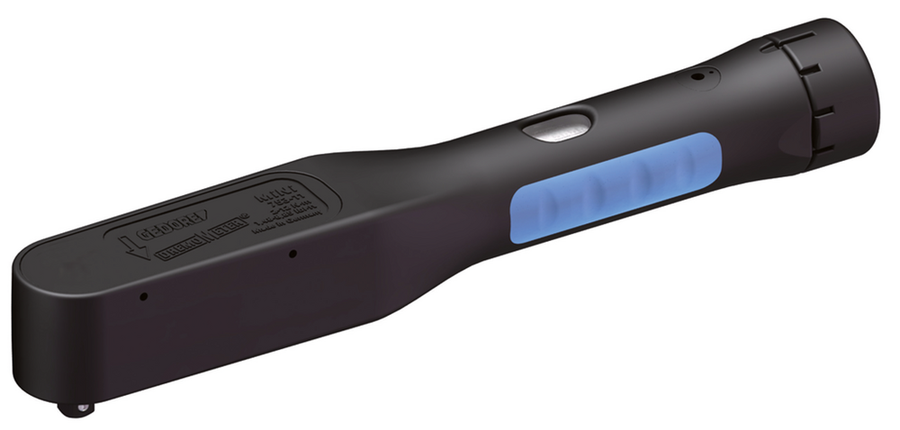

- Scope of delivery: Torque wrench Typ MINI
Technical Specifications
| Net weight [kg] | 0.55 kg |
|---|---|
| Total length [mm] | 211 mm |
| Total width [mm] | 31.5 mm |
| Total height [mm] | 31.5 mm |
| Material | Polyamide (glass-fiber reinforced) |
| Width of head 1 [mm] | 28.5 mm |
| Target groups | Automotive, Electronics industry, Precision mechanics, Military, Energy, Mechanical engineering, Workshop, Service, Agriculture, Control cabinet construction |
| Head height 1 [mm] | 28 mm |
| Drive square inch | 1/4" |
| Drive connector square [metric] | 6.3 mm |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 12 Nm |
| Drive type/drive | Single square rigid |
| Torque (min.) [Nm] | 2.5 Nm |
| Torque (max.) [lbf·ft] | 106 lbf·ft |
| Torque (max.) [lbf·in] | 22.5 lbf·in |
| Precision +/- | +/- 3 % |
| Tightening direction | Right |
| Torque range (min./max.) [Nm] | 2.5 Nm - 12 Nm |
| Torque (min.) [lbf·ft] | 22.5 lbf·ft |
| Torque range (min./max.) [lbf·ft] | 22.5 lbf·ft - 106 lbf·ft |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| vernier Nm | 0.05 Nm |
| Torque (min.) [lbf·in] | 106 lbf·in |
| Scale division [Nm] | 5 Nm |
| Calibration length | 130 mm |
| Torque range (min./max.) [lbf·in] | 22.5 lbf·in - 106 lbf·in |
| Graduation [lbf·in] | 5 lbf·in |
| Distance housing - square drive | 14.5 mm |
