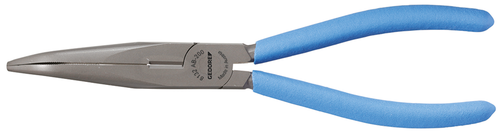

Product Overview
- 45° angled tips make gripping round the corner possible
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
Technical Specifications
| Net weight [kg] | 0.19 kg |
|---|---|
| Total length [mm] | 200 mm |
| Total width [mm] | 55 mm |
| Total height [mm] | 19 mm |
| Material | Quenched and tempered steel |
| Width of head 1 [mm] | 18.5 mm |
| Colour | steel grey |
| Standard | similar to DIN ISO 5745 |
| Handle design | dip-insulated |
| Handle colour | blue |
| Design non-sparking | No |
| Cutting values | Hard wire: 2,2 mm / 11 AWG, Medium hard wire: 3,2 mm / 8 AWG |
| Hardness of cutting edge | 61 - 63 HRC |
| Jaw length L3 [mm] | 70.5 mm |
| Joint types | inserted joint |
| Blade shape | with facet |
| Head thickness [mm] T1 | 9.5 mm |
| Jaw shape [mm] | flat-round jaws |
| Width of centres W4 [mm] | 3.7 mm |
| Thickness of point | 2.8 mm |
| with cutting edge | Yes |
| Hardening process | Induction hardened |
| Bevel | with |
