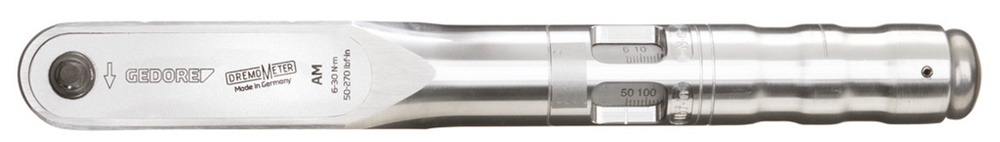

Product Overview
- Automatic short-path actuation with tactile impulse and audible signal
- Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
- Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a lever mechanism
- Forged lever chain from our group own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Technical Specifications
| Net weight [kg] | 0.992 kg |
|---|---|
| Total length [mm] | 268 mm |
| Total width [mm] | 30 mm |
| Total height [mm] | 40.5 mm |
| Width of head 1 [mm] | 30.0 mm |
| Target groups | Automotive, Electronics industry, Precision mechanics, Military, Energy, Mechanical engineering, Workshop, Service, Agriculture, Control cabinet construction |
| Head height 1 [mm] | 30 mm |
| Drive square inch | 1/4" |
| Drive connector square [metric] | 6.3 mm |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 30 Nm |
| Drive type/drive | Single square rigid |
| Torque (min.) [Nm] | 6 Nm |
| Torque (max.) [lbf·in] | 50 lbf·in |
| Precision +/- | +/- 3 % |
| Tightening direction | Right |
| Torque range (min./max.) [Nm] | 6 Nm - 30 Nm |
| Torque range (min./max.) [lbf·ft] | - |
| Trigger mechanism | Short path triggering |
| Torque (min.) [lbf·in] | 270 lbf·in |
| Scale division [Nm] | 1 Nm |
| Storage/Content | Plastic cassette |
| Torque wrench type | AM |
| Calibration length | 206 mm |
| Torque range (min./max.) [lbf·in] | 50 lbf·in - 270 lbf·in |
| Graduation [lbf·in] | 10 lbf·in |
| Distance housing - square drive | 15 mm |
