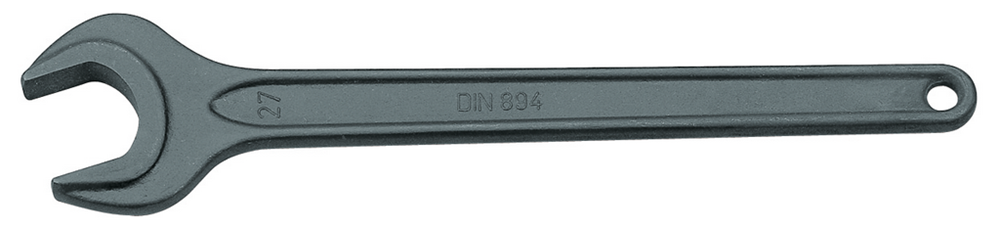

Product Overview
- Manganese phosphate finish up to 38 mm, steel-grey up from 41 mm
- Size 10 - 135 mm with anging hole
- Carefully forged and professionally machined: Jaw: ground precisely to exact nominal size for optimum contact areas
- Jaw set at 15°
- Secure grip thanks to profile shaft - very ergonomic and handy
- Overloading indicated by deformation
- * not standardised
Technical Specifications
| Net weight [kg] | 0.039 kg |
|---|---|
| Total length [mm] | 130 mm |
| Total width [mm] | 28 mm |
| Total height [mm] | 6 mm |
| Material | Chrome steel 32Cr2 |
| Width of head 1 [mm] | 28.5 mm |
| Surface | manganese-phosphated |
| Width across flats 1 [mm] | 13 |
| Head height 1 [mm] | 5.5 mm |
| Standard | DIN 894, ISO 3318 |
| Jaw set | 15 ° |
