Product Overview
- Use: Controlled tightening and verification of tightening values
- For use in almost all industrial manufacturing areas
- Working ranges from 0.8 - 200 Nm / 7 lbf·in - 160 lbf·ft are covered

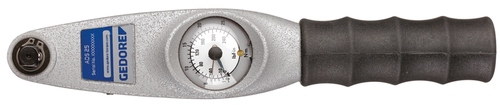

- Features: Dial-indicating torque wrench with dual scale and slave pointer
- 1/4"
- 3/8", or 1/2" double square drive with ball lock for controlled clockwise and anticlockwise tightening
- Models No. ADS 4 to No. ADS 40: With integrated ratchet function
- For controlled screw tightening and torque measurements
- Display accuracy: +/- 4 % tolerance of the indicated value
- With dual scale in Nm and lbf·in or lbf·ft double-tinted clearly readable face
- Built-in overload protection - mechanical stop up to a maximum of 25% overload of the maximum value
- Housing made of light, robust special aluminium construction - painted silver-grey
- Black, non-slip rubber handgrips
- Model No. ADS 4 to No. ADS 40: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
Technical Specifications
| Net weight [kg] | 0.52 kg |
|---|---|
| Total length [mm] | 244 mm |
| Total height [mm] | 61 mm |
| Material | Aluminium (housing), Steel tube (handle bar) |
| Target groups | Automotive, Electronics industry, Industry, Construction and commercial vehicles, Military, Mechanical engineering, Service |
| Drive square inch | 3/8" |
| Drive connector square [metric] | 10 mm |
| Range of application | Production, Quality control, Maintenance and repair |
| Torque (max.) [Nm] | 12 Nm |
| Drive type/drive | Double square ratchet |
| Torque (min.) [Nm] | 2.4 Nm |
| Torque (max.) [lbf·in] | 24 lbf·in |
| Measurement accuracy | +/- 4% Toleranz vom angezeigten Wert |
| Precision +/- | +/- 4 % |
| Tightening direction | Left and right |
| Torque range (min./max.) [Nm] | 2.4 Nm - 12 Nm |
| Epa-/Esd-Model | Yes |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Torque (min.) [lbf·in] | 120 lbf·in |
| Scale division [Nm] | 5 Nm |
| Graduation [lbf·in] | 2 lbf·in |
