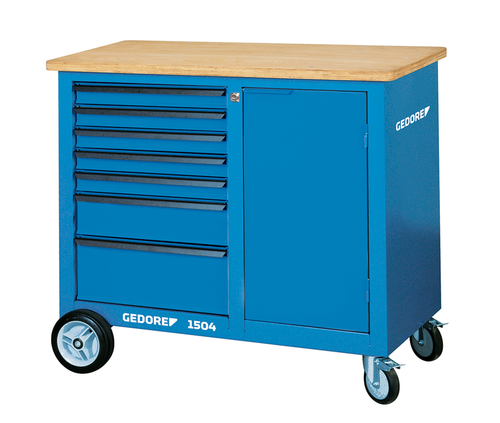

Product Overview
- Body: Dimensions: H 985 x B 1100 x D 550 mm
- Large storage space with lower shelf and door
- With rear panel, square perforation 10 x 38 mm to fix hooks and tools, with lowering mechanism, can be raised by 2 gas springs
- Safety through heel protection for persons
- Drawers: Central locking with cylinder clock
- Wide drawers (W 480 x D 400 mm) fully extendable, removable
- Safety locking per drawer, one-hand operation
- Guide rails with ball bearings
- Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually)
- GEDORE high-performance chassis: Total load capacity 1000 kg
- 750 kg when mobile
- 2 GEDORE heavy-duty wheels with roller bearings (fixed castors
- 200 mm)
- 2 GEDORE easy-running wheels with ball bearings (swivel castors
- 125 mm), both with total brake each
- The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads
- Accessories: 2 distance modules No. 1500 ED-70 K
- 10 length- (LT) and 2 crosswise (QT) dividers from zinc-plated sheet steel
- Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT)
- Further drawer versions upon request
- Special colours and designs on request
- Delivery without tools and accessories
Technical Specifications
| Net weight [kg] | 128 kg |
|---|---|
| Total width [mm] | 1.100 mm |
| Total height [mm] | 1.625 mm |
| Material | Steel sheet |
| Surface | powder-coated |
| Total depth [mm] | 665 mm |
| Colour | blue |
| Dimension (L x W x H) | 1.625 mm x 1.100 mm x |
| Thickness (e.g. workplate) | 30 mm |
| Drawer type | 5x Type 1, H = 67 mm 1x Type 2, H = 137 mm 1x Type 3, H = 207 mm |
| Number of crosswise dividers | 2 |
| Number of lengthwise dividers | 3 |
| Number of drawers | 7 |
| Load capacity kg | 500 kg |
| Lockable | Yes |
| Number of wheels | 4 |
| Static load carrying capacity [kg] | 700 kg |
| Load capacity per drawer [kg] | 40 kg |
| Load capacity heavy duty drawer [kg] | 60 kg |
| Fixed roller diameter (2x) | 200 |
| Swivel castor diameter with brakes (2x) | 125 |
| Number of cabinets | 1 |
