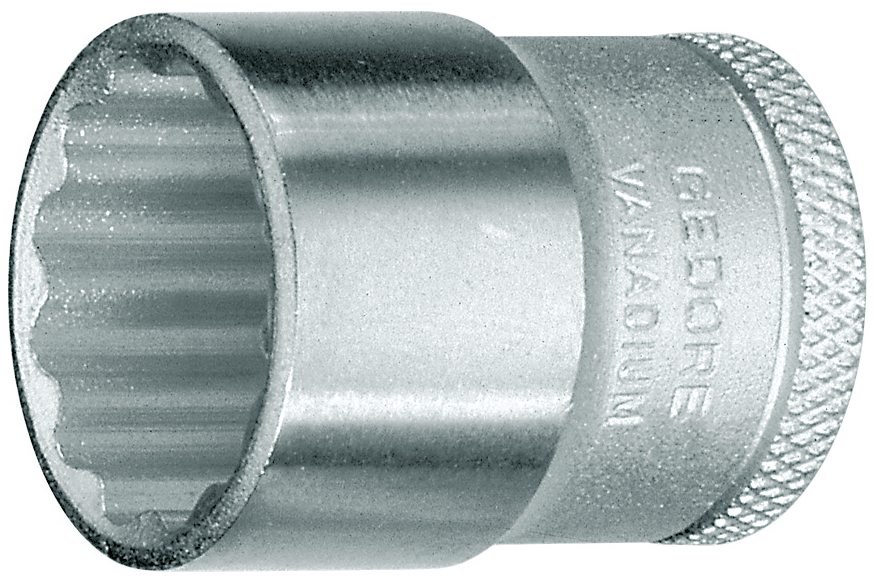

Product Overview
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, polished, chrome-plated
- * not standardised
Technical Specifications
| Net weight [kg] | 0.049 kg |
|---|---|
| Total length [mm] | 30 mm |
| Total width [mm] | 22 mm |
| Total height [mm] | 22 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Surface | ground, chrome-plated |
| Width across flats 1 [mm] | 16 |
| Standard | DIN 3124, ISO 2725-1, DIN 3120 - C 10, ISO 1174 |
| Drive mount, square [metric] | 10.0 mm |
| Drive connector square [inch] | 3/8" |
| Backup | Ball Catching Cricket |
| Working length | 30.0 mm |
| Insert-Ø 1 | 22.2 mm |
| Insert-Ø 2 | 21.0 mm |
| Operating depth | 12.5 mm |
