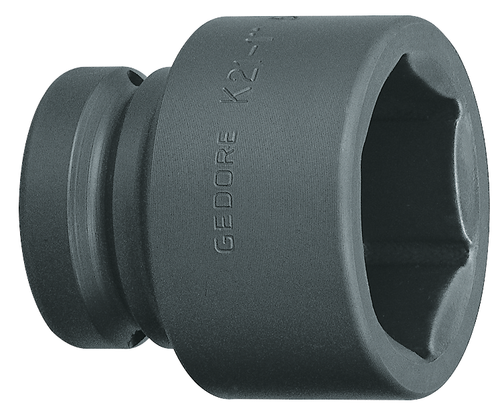

Product Overview
- Vanadium steel 59CrV4, burnished
- DBGM (German utility patent)
- Particularly ideal for work in sensitive areas, where safety against loss, process safety and occupational safety are permanently present
- Examples: Overhead line construction, wind energy plants or in the automotive sector
Technical Specifications
| Net weight [kg] | 0.9 kg |
|---|---|
| Total length [mm] | 85 mm |
| Material | Chrome-vanadium steel 50CrV4 |
| Surface | blued |
| Width across flats 1 [mm] | 65 |
| Standard | DIN 3129, ISO 2725-2, DIN 3121 - H 25, ISO 1174 |
| Drive mount, square [metric] | 25.0 mm |
| Drive connector square [inch] | 1" |
| Backup | Impact fix |
| Working length | 85.0 mm |
| Insert-Ø 1 | 94.2 mm |
| Insert-Ø 2 | 54.0 mm |
| Operating depth | 29.4 mm |
| Actuation type | machine-operated |
| Test torque (min.) [Nm] | 4000 Nm |
