Product Overview
- By using the supplementary kit, the injector extractor KL-0186-14 KB resp. KL-0186-80 K also fits the above-mentioned injectors and engines.
- Alternatively the kit can be also used with an impact extractor.
Technical Specifications
| Contents (Qty of pieces) | 2 |
|---|---|

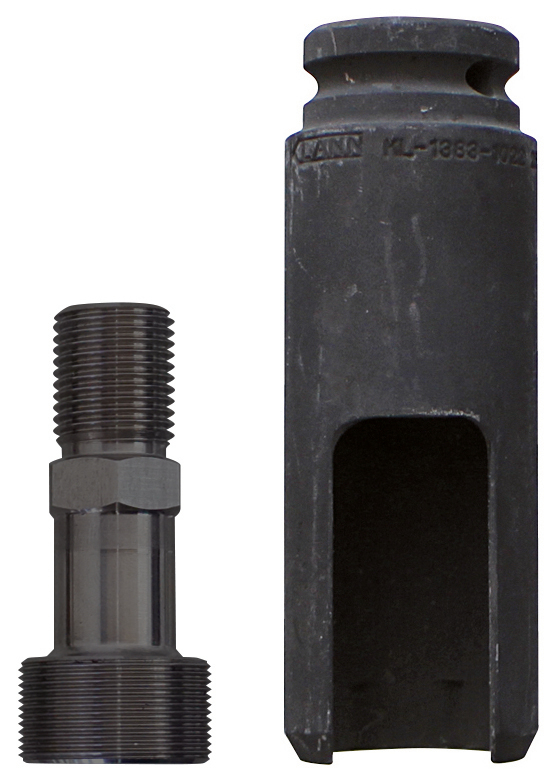

| Parts list (Text) | 1x KL-1383-1021 A - Pull adapter M25x1, 1x KL-1383-1022 - Special socket spanner 25 mm (waf) |
| Target groups | Automotive |
| Suitable for | Suitable for Siemens injectors with a female thread M25x1 and a spanner size of 25 mm., For example, fits particularly with VW, Audi, Seat, Škoda 1.6 TDI (CAYA, CAYB, CAYC, CAYD, CLNA) and PSA 2.0 HDI (DW10), etc. |
| for motor type | Diesel |
| Required accessories | KL-0186-14 KB - Injector extractor kit, if necessary motor specific support pin kit - KL-0186-12.. / -13... may be required. |
| Width across flats 1 [mm] | 25 mm |
| Drive connector square [inch] | 1/2" |
| Profile | Hexagon |
| Drive type | hydraulic, mechanical, manual |
| for internal thread | M25x1 |
| for injectors from | Continental, Siemens/VDO |
