Product Overview
- By using the supplementary kit, the injector extractor KL-0186-14 KB resp. KL-0186-80 K also fits the above-mentioned injectors and engines.
- Alternatively the kit can be also used with an impact extractor.
Technical Specifications
| Contents (Qty of pieces) | 2 |
|---|---|

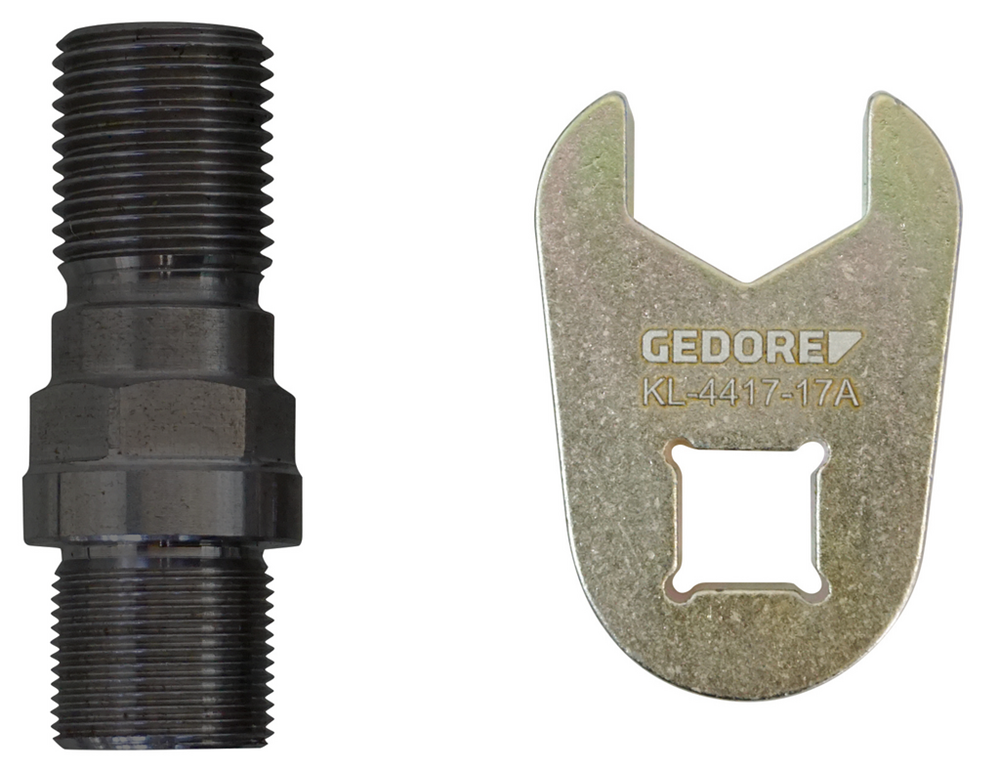

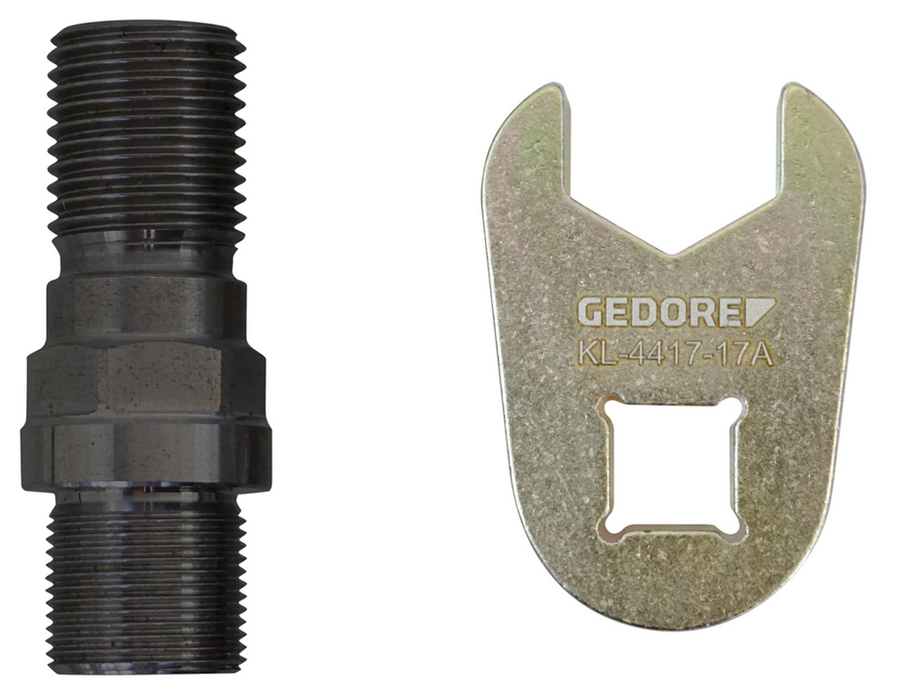

| Parts list (Text) | 1x KL-0186-1612 A - Pull adapter M16x1, 1x KL-4417-17 A - Open-end spanner 17 mm (waf) |
| Target groups | Automotive |
| Suitable for | Suitable for Denso injectors with a female thread M16x1 and a spanner size of 17 mm., Particularly suitable, for example, for Toyota and Lexus 2.2, 2.5 and 3.0 common rail diesel engines (1KD-FTV, 2AD-FHV, 2AD-FTV, 2KD-FTV H, 2KD-FTV L), etc. |
| for motor type | Diesel |
| Required accessories | KL-0186-14 KB - Injector extractor kit, if necessary motor specific support pin kit - KL-0186-12.. / -13... may be required. |
| Width across flats 1 [mm] | 17 mm |
| Drive connector square [inch] | 3/8" |
| Profile | Hexagon |
| Drive type | hydraulic, mechanical, manual |
| for internal thread | M16x1 |
| for injectors from | Denso |
