Product Overview
- The wheel hub puller enables the professional removal of the wheel hub directly on the vehicle.
- The wheel hub is pulled off via the wheel studs.
- The various thrust pieces ensure a central support over the axle tube.
Technical Specifications
| Contents (Qty of pieces) | 7 |
|---|---|
| Net weight [kg] | 26 kg |

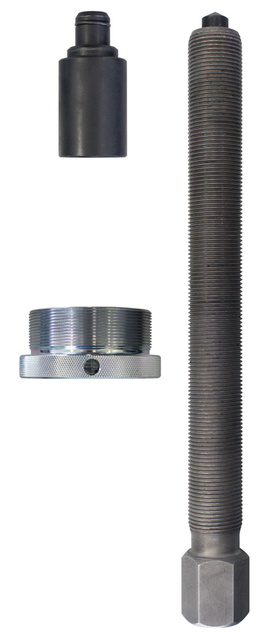

| Parts list (Text) | 1x KL-1005-100 A - Wheel hub puller set for commercial vehicles, 1x KL-1005-800 - Mechanical drive set for commercial vehicles |
| Target groups | Construction and commercial vehicles, Agriculture |
| Suitable for | Universal fit suitable for wheel hubs of commercial vehicles (as well as wheel hubs with integrated compact wheel bearing) with removable hub caps on the axle systems with a hole circle Ø of 8x275 mm and 10x335 mm for BPW, SAF and ZF front and rear a |
| Wheel stud circles | 8 x 275 mm, 10 x 335 mm |
| Note | Hydraulic drive also possible. Required drive parts: KL-0040-2800 - Hydraulic cylinder 28 t, KL-0215-35 M28 - Hydraulic pump, KL-0040-2812-1 - Pressure spindle M24, KL-0040-2812-5 - Pressure nut M24, KL-0039-1002 - Mounting adapter |
| Drive type | mechanical |
| Load (max.) [t] | 28 t |
| Width, inside (press frame) [mm] | 178 mm - 320 mm |
| Length, inside (press frame) [mm] | 152 mm |
