Product Overview
- Serial manufacture with constant tightening value
- Electronic industry, precision mechanics and industrial manufacturing
- Features: Pre-set torque screwdriver - without scale
- Calibrated to a permitted +/- 6 % deviation of the set torque
- Precision radial ball clutch and cam design for controlled bi-directional tightening
- Precision mechanism slips very noticeably when the pre-set value is achieved
- Automatic resetting to the starting position
- Fatigue-free working due to an ergonomic hand grip and a smoth tool reset action
- Calibration stickers can be easily applied to the purpose designed nose
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)

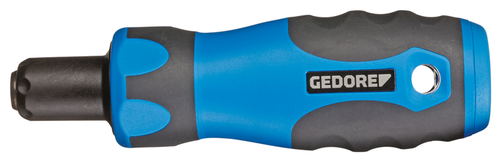

- Scope of delivery: Torque screwdriver Type PRO FH

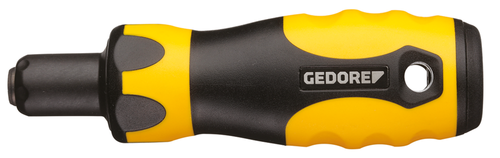

- Models ESD 450 FH and ESD 1350 FH with additional lateral handle for easier handling
- Delivery in sturdy cardboard packaging
Technical Specifications
| Net weight [kg] | 0.27 kg |
|---|---|
| Total length [mm] | 140 mm |
| Total height [mm] | 37.4 mm |
| Target groups | Automotive, Electronics industry, Industry, Precision mechanics, Military, Service |
| Drive connector hexagon [metric] | 6.3 mm |
| Drive connector hexagon [inch] | 1/4" |
| Range of application | Assembly, Production, Quality control, Series assembly, Maintenance and repair |
| Torque (max.) [Nm] | 4.5 Nm |
| Drive type/drive | Bitholder |
| Torque (min.) [Nm] | 0.5 Nm |
| Precision +/- | +/- 6 % |
| Tightening direction | Left and right |
| Torque range (min./max.) [Nm] | 0.5 Nm - 4,5 Nm |
| Fixed setting | Yes |
| Trigger mechanism | Friction clutch |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Torque (max.) [cNm] | 450 cNm |
| Torque (min.) [cNm] | 50 cNm |
| Torque range (min./max.) [cNm] | 50 cNm-450 cNm |
| Cross-handle available | Yes |
