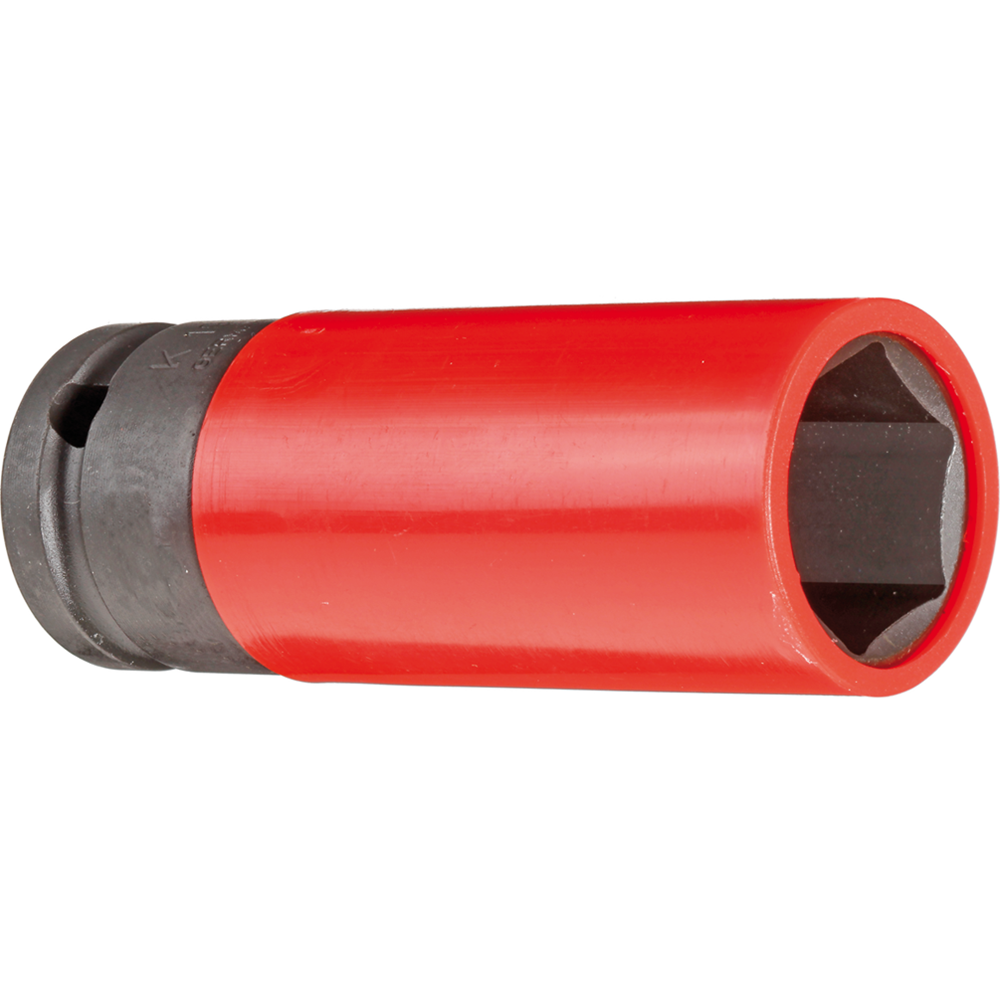

Product Overview
- Specially for fitting / removing wheels of vehicles
- Plastic sleeves for damage-free work on aluminium wheel rims
- Colour coding for ease in identifying the right size
Technical Specifications
| Net weight [kg] | 0.24 kg |
|---|---|
| Total length [mm] | 86 mm |
| Total width [mm] | 31 mm |
| Total height [mm] | 31 mm |
| Material | Chrome-molybdenum steel |
| Surface | phosphated |
| Width across flats 1 [mm] | 21 |
| Colour | red |
| Standard | DIN 3121 - G 12,5, ISO 1174, DIN 3129, ISO 2725-2 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Circlip and pin |
| Insertion depth 1 | 20.0 mm |
| Working length | 85.0 mm |
| Insert-Ø 1 | 30.8 mm |
| Insert-Ø 2 | 30.0 mm |
| Actuation type | machine-operated |
| Test torque (min.) [Nm] | 650 Nm |
| Insertion depth 2 | 16.0 mm |
