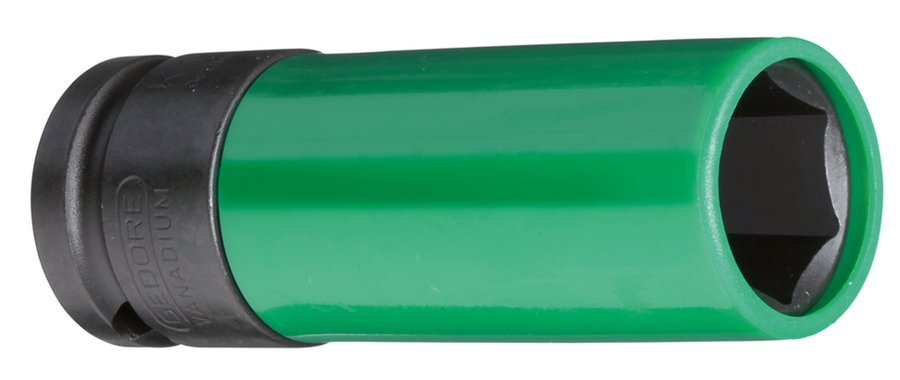

Product Overview
- Thin-walled to protect the light alloy rims
Technical Specifications
| Net weight [kg] | 0.2 kg |
|---|---|
| Total length [mm] | 83 mm |
| Total width [mm] | 30 mm |
| Total height [mm] | 30 mm |
| Material | Steel |
| Type | with colored plastic sleeve |
| Surface | manganese-phosphated |
| Width across flats 1 [mm] | 19 |
| Colour | traffic green |
| Standard | DIN 3121 - G 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Circlip and pin |
| Insertion depth 1 | 30.0 mm |
| Working length | 82.0 mm |
| Insert-Ø 1 | 29.0 mm |
| Insert-Ø 2 | 30.0 mm |
| Operating depth | 17.0 mm |
| Actuation type | machine-operated |
| RAL colour tone | RAL 6024 |
