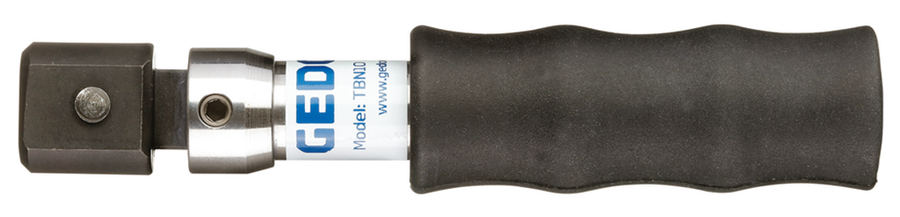

Gedore 7090770 TBN 10 G Breaking torque wrench TBN KNICKER 2-10 Nm
Gedore 7090770 TBN 10 G Breaking torque wrench TBN KNICKER 2-10 Nm
Out of stock at the moment. Contact us or message us on WhatsApp and we'll check when it's back.
Buying in bulk? Apply for a trade account for trade prices.
| Brand | Gedore |
|---|---|
| SKU | GED7090770 |
| MPN | 7090770 |
| Barcode | 4002805760017 |
| Weight | 0.28 KGS |
| Dimensions | 5.00 × 4.00 × 19.50 cm (W × H × D) |
Description
- Serial / production-line
- Extremely long-term work
- Features: Pre-set torque wrench - without scale
- For bi-directional tightening (the wrench only has to be turned by 180°!)
- Working accuracy: +/- 6 % tolerance of set torque
- Breaking of the handgrip by 20° when the pre-set torque value is achieved makes over-tightening unlikely
- Automatic resetting to the starting position
- Lightweight, but robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- No. TBN 2 G: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)
- Scope of delivery: Torque wrench TBN Breaking Torque wrench
- Special adjusting key for changing the pre-set torque value
- Delivery in sturdy cardboard packaging
Specifications
| Net weight [kg] | 0.24 kg |
|---|---|
| Total length [mm] | 133 mm |
| Material | Steel tube (construction) |
| Target groups | Automotive, Industry, Precision mechanics, Military, Mechanical engineering |
| Range of application | Assembly, Series assembly, Production, Quality control |
| Torque (max.) [Nm] | 10 Nm |
| Drive type/drive | Rectangular cavity |
| Torque (min.) [Nm] | 2 Nm |
| Torque (max.) [lbf·in] | 17.8 lbf·in |
| Precision +/- | +/- 6 % |
| Tightening direction | Left and right |
| Drive connector rectangular | 9 x 12 |
| Epa-/Esd-Model | Yes |
| Fixed setting | Yes |
| Trigger mechanism | Long travel triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Backup | Catch lock |
| Torque (min.) [lbf·in] | 89 lbf·in |
