Product Overview
- Use: Controlled screw tightening in the range of 0,4 - 2 Nm
- Serial / production-line
- Extremely long-term work
- Features: Pre-set torque wrench - without scale
- For bi-directional tightening (the wrench only has to be turned by 180°!)
- Working accuracy: +/- 6 % tolerance of set torque
- Breaking of the handgrip by 20° when the pre-set torque value is achieved makes over-tightening unlikely
- Automatic resetting to the starting position
- Lightweight, but robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- No. TBN 2 G: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)

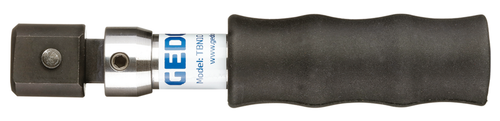

- Scope of delivery: Torque wrench TBN Breaking Torque wrench
- Special adjusting key for changing the pre-set torque value
- Delivery in sturdy cardboard packaging
Technical Specifications
| Net weight [kg] | 0.266 kg |
|---|---|
| Total length [mm] | 133 mm |
| Material | Steel tube (construction) |
| Target groups | Automotive, Industry, Precision mechanics, Military, Mechanical engineering |
| Range of application | Assembly, Series assembly, Production, Quality control |
| Torque (max.) [Nm] | 2 Nm |
| Drive type/drive | Rectangular cavity |
| Torque (min.) [Nm] | 0.4 Nm |
| Torque (max.) [lbf·in] | 3.6 lbf·in |
| Precision +/- | +/- 6 % |
| Tightening direction | Left and right |
| Drive connector rectangular | 9 x 12 |
| Epa-/Esd-Model | Yes |
| Fixed setting | Yes |
| Trigger mechanism | Long travel triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Backup | Catch lock |
| Torque (min.) [lbf·in] | 18 lbf·in |
