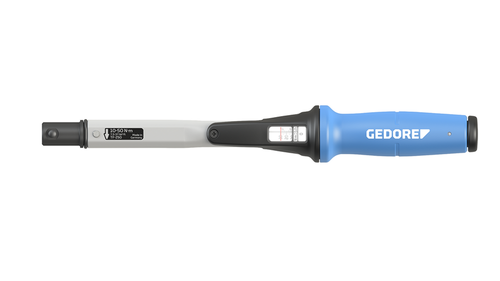

Product Overview
- For controlled right- and left-hand tightening (insert tool for change of direction)
- Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts
- New ergonomic handle, shaped according to the natural grip position of the hand
- Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
- Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
- With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale
- Scale line positioned directly above the scale prevents reading errors (parallax errors)
- Unit labeling integrated in the scale frame and also protected by viewing windows,
- The precise release mechanism generates a distinct tactile and audible release signal when the set torque value is reached
- Incl. roll away protection, prevents rolling away when the tool is put down
Technical Specifications
| Net weight [kg] | 0.75 kg |
|---|---|
| Total length [mm] | 291.5 mm |
| Total width [mm] | 39 mm |
| Total height [mm] | 39.8 mm |
| Material | Steel tube (construction), Plastic |
| Target groups | Automotive, Industry, Construction and commercial vehicles, Military, Energy, Mechanical engineering, Utilities, Service, Agriculture, Oil & Gas |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 50 Nm |
| Drive type/drive | Rectangular cavity |
| Torque (min.) [Nm] | 10 Nm |
| Torque (max.) [lbf·ft] | 37 lbf·ft |
| Precision +/- | +/- 3 % |
| Tightening direction | Left and right |
| Drive connector rectangular | 9 x 12 |
| Torque range (min./max.) [Nm] | 10 Nm - 50 Nm |
| Torque (min.) [lbf·ft] | 7.5 lbf·ft |
| Torque range (min./max.) [lbf·ft] | 7.5 lbf·ft - 37 lbf·ft |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| vernier Nm | 0.25 Nm |
| Backup | Catch lock |
| Depth gauge [metric] | 17.5 mm |
| Graduation [lbf·ft] | 25 lbf·ft |
| Scale division [Nm] | 2.5 Nm |
| Storage/Content | Plastic box |
| Graduation | 2.5 |
| Calibration length | 236.5 mm |
