Product Overview
- Serial / production-line
- Extremely long-term work
- Features: Pre-set torque wrench - without scale
- 1/4" square drive with ball locking device
- With integrated ratchet-function for controlled clockwise tightening
- Working accuracy: +/- 6 % tolerance of set torque
- Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible
- Automatic resetting to the starting position
- Lightweight, but robust and corrosion-resistant construction design
- Very convenient non-slip rubber handgrip
- The pre-setting can be made at the factory or by the user on suitable torque testers
- If fixed setting at the factory is desired is required, please state the Nm value when ordering (price on request)
- EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications

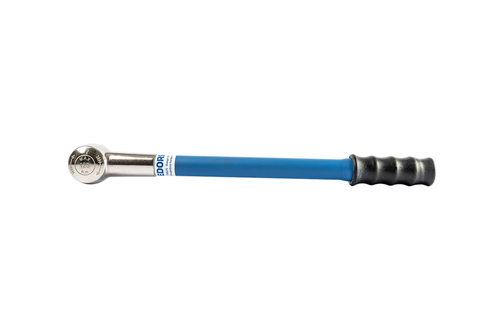

- Scope of delivery: Torque wrench type TSN SLIPPER
- Special adjusting key for changing the pre-set torque value
- Delivery in sturdy cardboard packaging
Technical Specifications
| Net weight [kg] | 0.319 kg |
|---|---|
| Total length [mm] | 195 mm |
| Target groups | Automotive, Industry, Military, Energy, Mechanical engineering |
| Drive square inch | 1/4" |
| Drive connector square [metric] | 6.3 mm |
| Range of application | Assembly, Series assembly, Production, Quality control |
| Torque (max.) [Nm] | 10 Nm |
| Drive type/drive | Single square ratchet |
| Torque (min.) [Nm] | 2 Nm |
| Torque (max.) [lbf·in] | 20 lbf·in |
| Precision +/- | +/- 4 % |
| Tightening direction | Right |
| Torque range (min./max.) [Nm] | 2 Nm - 10 Nm |
| Torque range (min./max.) [lbf·ft] | - |
| Epa-/Esd-Model | Yes |
| Fixed setting | Yes |
| Trigger mechanism | Friction clutch |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Torque (min.) [lbf·in] | 90 lbf·in |
