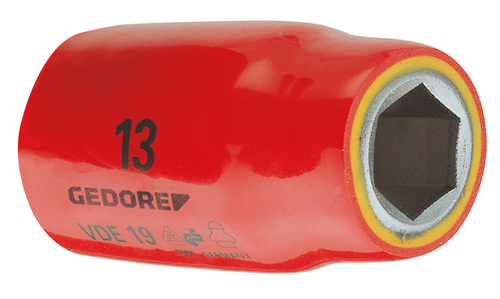

Product Overview
- Hexagonal, manually operated
- GEDORE vanadium steel 31CrV3
- 2-fold Check-Tool insulation
- 16 - 18 mm insulation overhang
- The diameter d1 for the dimensions 27
- 30 and 32 is not standardized
Technical Specifications
| Net weight [kg] | 0.08 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 55.5 mm |
| Total width [mm] | 27 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Type | VDE insulated up to 1000 V |
| Surface | double check-tool insulation |
| Width across flats 1 [mm] | 16 |
| Standard | DIN 3120 - C 12,5, ISO 1174, EN 60900/IEC60900 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Ball Catching Cricket |
| Working length | 55.5 mm |
| Insert-Ø 1 | 27.0 mm |
| Insert-Ø 2 | 27.0 mm |
