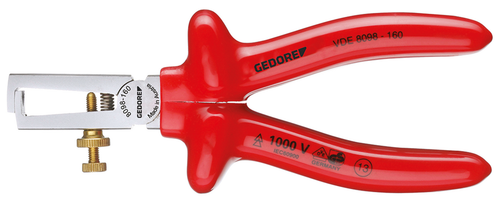

Product Overview
- Opens automatically, with spring and adjusting screw
- Easy adjustment to the required wire or strand diameter by means of the set screw and lock nut
- For wires from 0.8 to 6.0 mm²
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
Technical Specifications
| Net weight [kg] | 0.204 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 160 mm |
| Total width [mm] | 52 mm |
| Total height [mm] | 27 mm |
| Material | Quenched and tempered steel |
| Width of head 1 [mm] | 18.5 mm |
| Surface | chrome-plated |
| Standard | EN 60900/IEC60900 |
| Handle design | 2-component grips VDE insulated up to 1000 V. |
| Handle material | plastic |
| Handle available | Yes |
| Design non-sparking | No |
| Cable cross section [mm²] | 0.5-10,0 mm² |
| Jaw length L3 [mm] | 43.5 mm |
| Joint types | inserted joint |
| Head thickness [mm] T1 | 8.5 mm |
