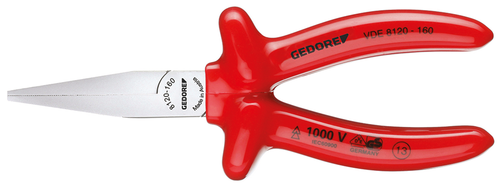

Product Overview
- Long, flat-round jaws, straight gripping faces, serrated
- 45° angled tips make gripping round the corner possible
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
Technical Specifications
| Net weight [kg] | 0.177 kg |
|---|---|
| 1000 V insulated | Yes |
| VDE certified | Yes |
| Total length [mm] | 160 mm |
| Material | Quenched and tempered steel |
| Width of head 1 [mm] | 16.5 mm |
| Surface | chrome-plated |
| Standard | similar to DIN ISO 5745, EN 60900/IEC60900 |
| Handle design | Dip insulation: double check tool insulation |
| Design non-sparking | No |
| Cutting values | Hard wire: 1,6 mm / 14 AWG, Medium hard wire: 2,5 mm / 10 AWG |
| Hardness of cutting edge | 61 - 63 HRC |
| Jaw length L3 [mm] | 46 mm |
| Head thickness [mm] T1 | 9.0 mm |
| Width of centres W4 [mm] | 3.2 mm |
| Thickness of point | 2.5 mm |
| with cutting edge | Yes |
