Product Overview

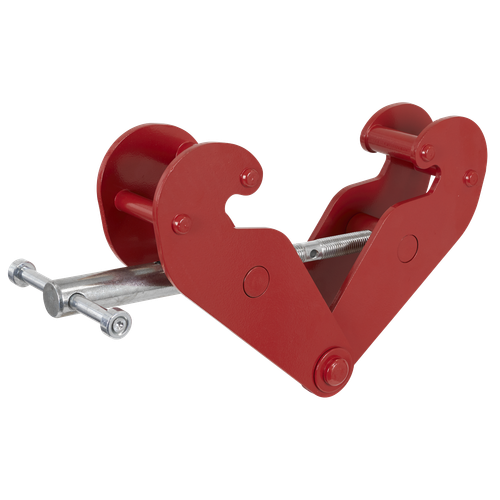

Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle. The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp. Low profile afforded by integral pivot/lifting point.
- SECURE ATTACHMENT - Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
- SOLID CLAMP - The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
- LOW PROFILE - Low profile afforded by integral pivot/lifting point.
- ROBUST CONSTRUCTION - All steel structure. Powder paint coated for rust resistance.
Technical Specifications
| Adjustable Beam Width | 75-220mm |
|---|---|
| Capacity | 2000kg |
| Dimensions | (A) - 230mm, (B) - 180-360mm, (C) - 74mm, (D) - 6mm, (E) - 215mm, (F) - 102-155mm, (G) - 25mm, (H) - Ø22mm |
| Nett Weight | 4.35kg |
| Note | Refer to catalogue for diagram. |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
