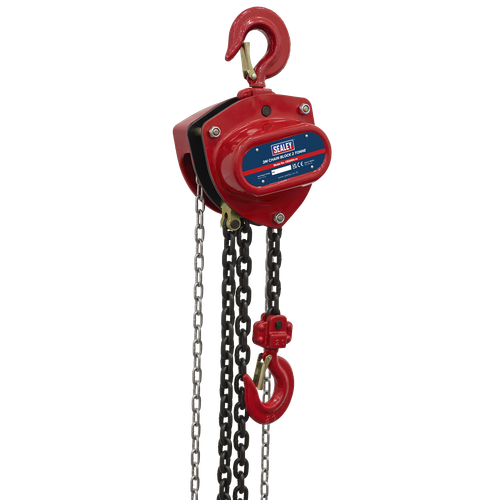

Product Overview
Fitted with heat treated and ground, triple-spur geared shaft and pinion. Includes mechanical load brake. All chains are manufactured from hardened alloy material. Load hooks feature safety latches. A compacted gear housing allows use where headroom is limited.
- HEAVY-DUTY COMPONENTS - Fitted with heat treated and ground, triple-spur geared shaft and pinion.
- EXTRA SAFETY - Includes mechanical load brake.
- HARDENED CHAINS - All chains are manufactured from hardened alloy material.
- SAFE HOOKS - Load hooks feature safety latches.
- COMPACT HOUSING - A compacted gear housing allows use where headroom is limited.
Technical Specifications
| Capacity | 2000kg |
|---|---|
| Head Room | 485mm |
| Hook Aperture | 33mm |
| Load Chain Diameter | Ø8mm |
| Maximum Hook Capacity Ø | 45mm |
| Nett Weight | 18.6kg |
| Pulling Effort | 343N |
| Safe Working Load | 2000kg |
| Size (W x D) | 187 x 161mm |
| Standard Lift | 3m |
| Test Load | 3000kg |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
