Product Overview

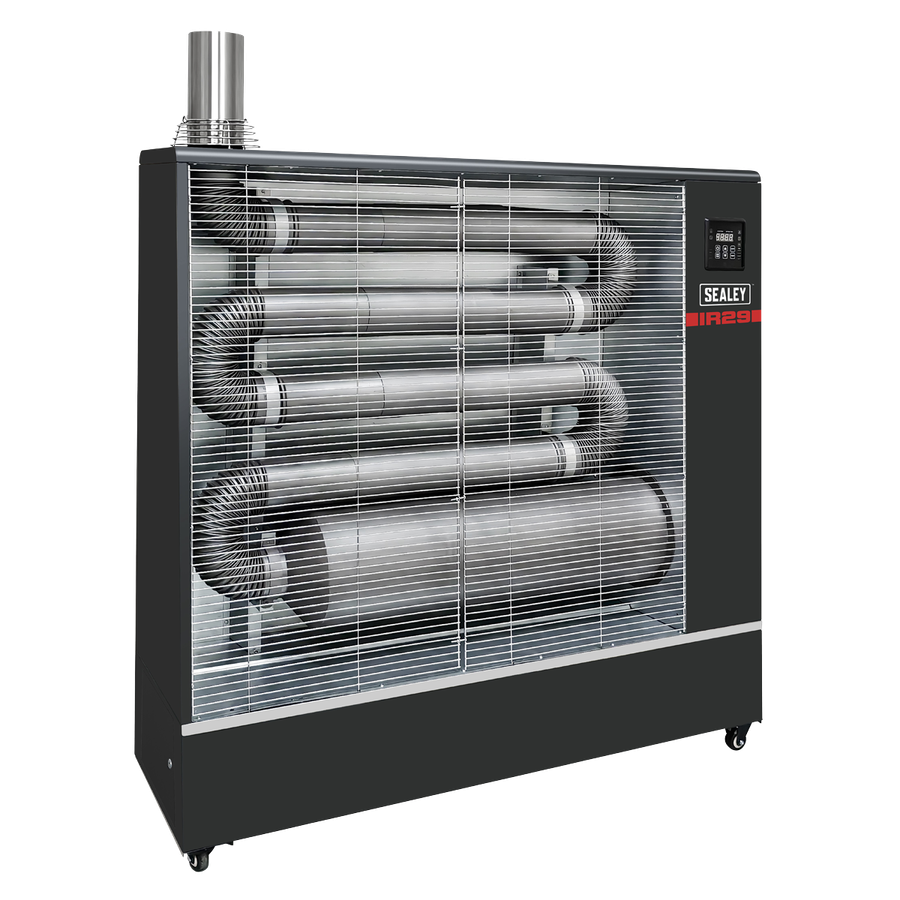

Versatile and compact diesel-fuelled Infrared technology heater has no electric fan, meaning there is no air movement and the heat is spread evenly in all directions, quietly and dust-free. Ideal for use in well-ventilated indoor areas including garages, workshops, warehouses and marquees. Extremely inexpensive to run, using only around 2.7L of fuel per hour. Clean burn and precisely controlled fuel supply, ensure that no unpleasant odours or carbon monoxide enter the air. Equipped with advanced safety features including overheat protection, auto-misfire, tilt, shock, low fuel shut-off sensors and flame-out fuel cut. Features 24hr timer and temperature control thermostat. Soft-touch control panel with LED display. Fitted with four castor wheels for easy manoeuvrability. Stainless steel accessories are available - IREX1 (End Pipe), IREX2 (1m Extension), IREX3 (90° Bend), IREX4 (Rain Cap) and IREX5 (Muffler) - See website for more info. Only suitable for use with fresh, clean diesel. The use of any other fuels or old/second-hand diesel will invalidate the warranty and may cause the unit to malfunction.
- VERSATILE - Ideal for use in well-ventilated indoor areas including garages, workshops, warehouses, and marquees.
- INFRARED TECHNOLOGY – Infrared technology heater has no electric fan, meaning there is no air movement, and the heat is spread evenly in all directions, quietly and dust-free.
- COST EFFECTIVE – Inexpensive to run, using only around 2.7L of fuel per hour.
- CLEAN BURN – A controlled fuel supply ensures that no unpleasant odours or carbon monoxide enter the air.
- SAFETY - Equipped with advanced safety features including overheat protection, auto-misfire, tilt, shock, low fuel shut-off sensors and flame-out fuel cut.
- TIMER - Soft-touch control panel with LED display and 24hr Timer using a temperature control thermostat.
- MANOEUVRABILITY – Supplied with four castor wheels for easy movement around the workspace.
- ACCESSORIES - A range of accessories are available as extras, Model No's: IREX1/2/3/4/5.
- 3 YEAR GUARANTEE*.
Technical Specifications
| Automatic Shut-Off | Yes |
|---|---|
| Energy Rating | A |
| Fuel Tank | 70L |
| Fuel | Diesel |
| Heated Area | 26,486ft³(750m³) |
| Motor Power | 80W |
| Nett Weight | 79.5kg |
| Output | 99,000Btu/hr(29kW) |
| Running Time per Filling (Maximum) | 25hr |
| Power | 80W |
| Energy Efficiency Class | B |
| Fuel Consumption | 2.18-2.30Kg/h |
| Noise Level | 58dB(A) |
| Nominal Heat Output | 99,000btu/hr |
| Energy Efficiency Index | 87.10% |
| Useful Energy Efficiency at Nominal Heat Output: ⴄ (nom) | 86,229btu/hr |
| Heating Capacity | 29kW 24940 Kcal/h |
| Supply | 230V~50Hz |
| Transport Wheels | Yes |
