Product Overview

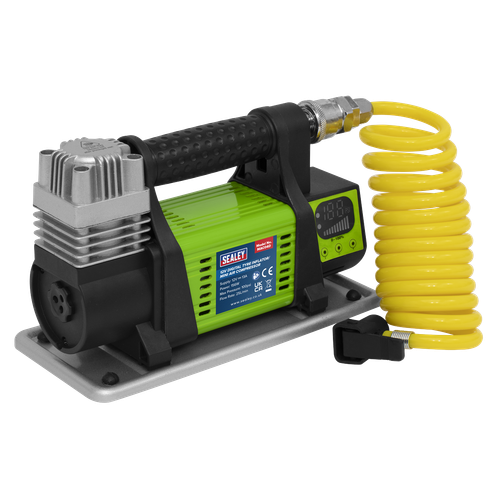

Suitable for inflating tyres on cars, vans, 4x4s, motorcycles and bicycles. High volume air pump with inflate/deflate function suitable for air mattresses and inflatables. Dual powered by 12V and 230V AC mains power. Maximum pressure 120psi. Air flow rate 22L/min with an inflation time of 0-35psi in 210sec (195/55R15). Pressure units psi, kPa, kg/cm² and bar. Auto-Shut-off safety feature when pre-set pressure is reached. Integrated SMD LED worklight with red SOS and flashing light function. Easy-to-read backlit LED digital display screen. Compact and lightweight unit with accessories fixed to the housing. Anti-vibration feet. Accessory kit includes Schrader connection, Presta type adaptor, ball spike and inflatables adaptor.
- DUAL POWER – The unit can run from both mains power 230V AC and 12V plug for use in vehicle accessory power socket.
- 3 MINUTE INFLATION TIME – Inflates any Schrader valve on cars, vans, 4x4s, motorcycles and bicycles.
- HIGH VOLUME AIR PUMP – Inflate and deflate function, for fast inflation of air mattresses and inflatables providing a maximum inflation rate of 350L/min.
- EASY OPERATION - Works in four pressure units: psi, kPa, kg/cm² and bar with maximum pressure of 120psi.
- BACKLIT DISPLAY SCREEN – Easy-to-read large digital display screen.
- AUTO-SHUT-OFF – Unit features auto-shut-off when preset pressure is reached.
- COMPACT UNIT – Lightweight unit for easy transportability with accessories fixed to the housing for easy storage, with anti-vibration feet.
- WIDE COMPATIBILTY – Schrader connection, Presta type adaptor, ball spike and inflatable adaptor.
- INTEGRATED LED LIGHT – White SMD LED worklight with red SOS and red flashing light function.
Technical Specifications
| Accuracy | ±1% |
|---|---|
| Maximum Air Supply | 120psi(8.3bar) |
| Nett Weight | 1.495kg |
| Pressure Units | psi, kPa, kg/cm², bar |
| Range | 0-120psi |
| Airflow | Compressor: 22L/min High Volume Air Pump: 350L/min |
| Hose Length | 700mm |
| Maximum Pressure | 120psi |
| High Volume Hose Length | 400mm |
| Supply | 230V~50Hz or 12V-10A |
| Power Supply Cable | AC: 1.8m DC: 3m |
| Continuous Working Time | 30mins |
| LED Light | 3 Modes |
| Inflation Time (175/70/R13) | 0-30psi in 194sec (230V) 0-30psi in 226sec (12V) |
| Max Current | 10A |
| Power | 120W |
| Max. Air Output | 120psi(8.3bar) |
| High Pressure Hose Length | 640mm |
