Product Overview

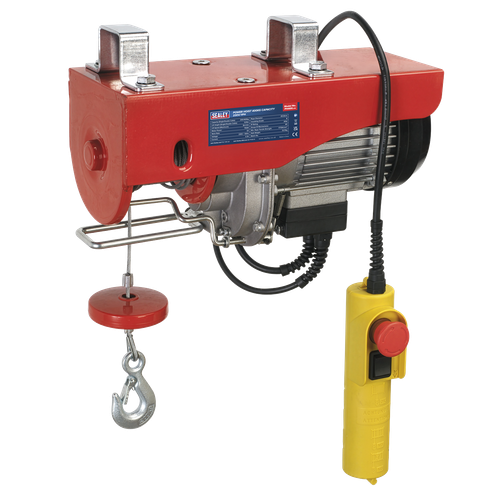

A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments. Simple installation using the brackets provided, to suitable square section beams. Thermostatic overload cut-out switch, protecting the motor. Remote control with emergency stop for easy control from a safe distance. Powder coated steel casing, for added corrosion resistance.
- MULTIPLE USES - A large, powerful motor capable of a number of lifting tasks, in garage, workshop, construction and industrial environments.
- EASY INSTALLATION - Simple installation using the brackets provided, to suitable square section beams.
- SAFETY CUT OUT - Thermostatic overload cut-out switch, protecting the motor.
- REMOTE CONTROL - Remote control with emergency stop for easy control from a safe distance.
- CORROSION RESISTANT - Powder coated steel casing, for added corrosion resistance.
Technical Specifications
| Capacity (Double Cable) | 1000kg |
|---|---|
| Capacity (Single Cable) | 500kg |
| Current | 7.5A |
| Duty Cycle | S3 |
| Group of Mechanisms | M1 |
| Insulating Grade | B |
| IP Rating | IP54 |
| Lift Height (Double Cable) | 6m |
| Lift Height (Single Cable) | 12m |
| Lift Speed (Maximum) | (Double) 4m/min (Single) 8m/min |
| Minimum Rope Tensile Strength | 1870N/mm² |
| Motor Power | 1600W |
| Nett Weight | 32.0kg |
| Rope Diameter | Ø6mm |
| Voltage | 230V~50Hz |
| Work Rate | S3 |
Warranty Information
1 year-year guarantee (parts & labour), in addition to your statutory rights.
