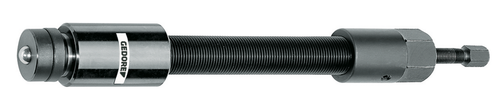

Product Overview
- For controlled and safe pulling work
- Set up for a pressure of 10 t
- 12 t or 15 t
- The thrust piece can be replaced by a tip and extended if necessary
- The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal
- Preparation for use: 1. before use, check that the pressure spindle is screwed out of the cap far enough so that the thrust piece is in the initial position in the hydraulic cylinder
- 2. unscrew the cap from the spindle body To do this, first loosen the grub screw
- 3. screw the spindle body from below into the crossbar of the extractor until the spindle body protrudes approx. 60 mm from the crossbar
- 4. screw the cap onto the spindle body as far as it will go and then fix it by screwing in the setscrew
- Application and mode of operation: e.g. HSP3
- 5. place puller and pre-tension spindle body with wrench SW 41
- 7. after use, the pressure spindle SW 17 is turned back to its initial position and the pressure pad is pressed into the hydraulic cylinder
Technical Specifications
| Spindle thread size | G 1/2" |
|---|---|
| Net weight [kg] | 1.43 kg |
| Total length [mm] | 350 mm |
| Thrust piece type | Ball thrust piece |
| Usable thread length [mm] | 135 mm |
| Width across flats 1 [mm] | 12 |
| Width across flats 2 [mm] | 32 |
| Power of pressure | 10.0 t |
| Compressive force [kN] | 100.0 kN |
| Compressive force [Nm] | 17.0 Nm |
| Head height 1 [mm] | 80 mm |
| Stroke | 12 mm |
