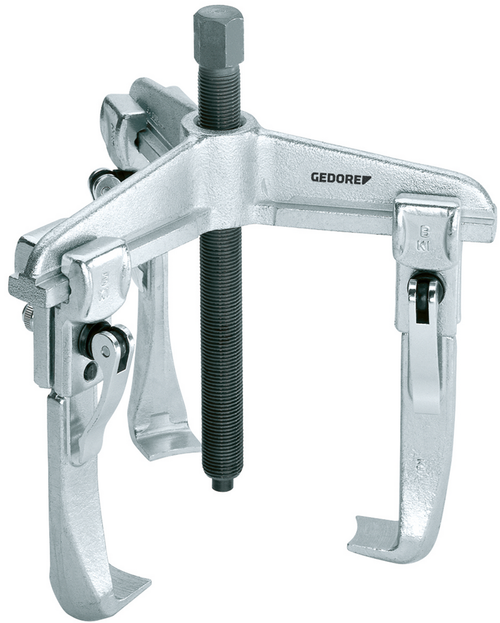

Product Overview
- Industrial quality
- 3 arms for optimum load distribution, non-tilting and gentle on material
- Strong, ergonomically shaped cross beam
- Hook red-hot drop-forged
- Self-supporting hooks with T-profile for a form-fit connection
- Patented quick adjustment for simple, safe setting and readjustment - without the use of tools
- Can be used as internal puller by repositioning the hooks
- Nitrocarburized spindle surface, wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
Technical Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M 14x1,5 x 140 |
| Clamping width a2 (min.) internal pulling [mm] | 70 mm |
| Clamping width a2 (max.) internal pulling [mm] | 140 mm |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 12 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3 |
| reversible arms available | Yes |
| Number of arms | 3 |
| Net weight [kg] | 1.4 kg |
| Quick release lever available | Yes |
| Can be retrofitted with hydraulic spindle | Yes |
| Clamping width (max.) external pulling [mm] | 90 mm |
| Hydraulic spindle optional | - |
