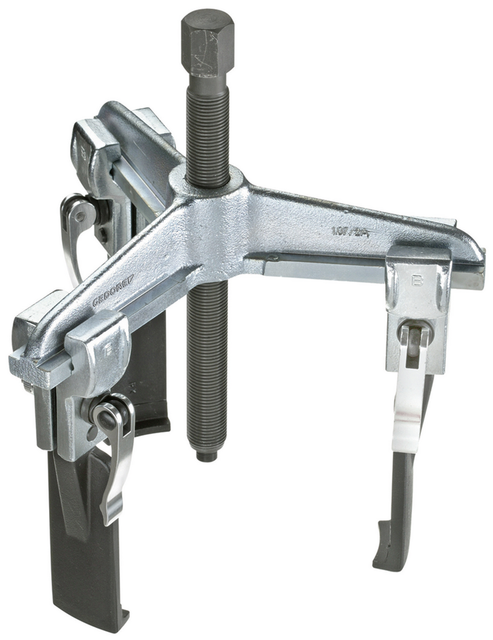

Product Overview
- Industrial quality
- 3 arms for optimum load distribution, non-tilting and gentle on material
- Hook red-hot drop-forged
- Slim forged hook feet
- Quick adjustment for simple, safe setting and readjustment - without the use of tools
- Nitrocarburized spindle surface, wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
Technical Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M 14x1,5 x 140 |
| Width of hooked foot [mm] | 29.5 mm |
| Usable depth of hooked foot d2 [mm] | 7.5 mm |
| Thickness of hooked foot at tip | 3.7 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 2.5 |
| Number of arms | 3 |
| Net weight [kg] | 1.64 kg |
| Hook can be moved parallel | Yes |
| Quick release lever available | Yes |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 90 mm |
| Hydraulic spindle optional | - |
| Depth of hooked foot [mm] 3 | 13.5 mm |
