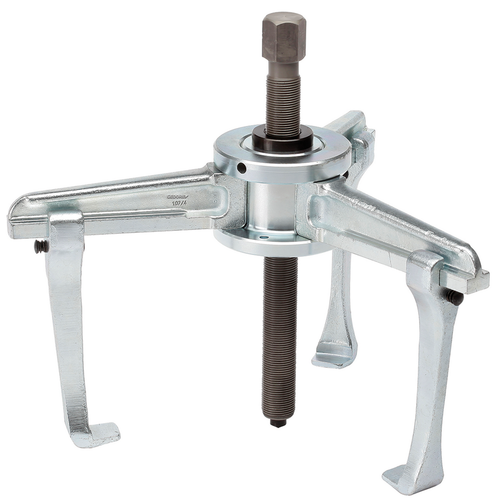

Product Overview
- Industrial quality
- 3 arms for optimum load distribution, non-tilting and gentle on material
- Strong, ergonomically shaped cross beam
- Hook red-hot drop-forged
- All-steel hooks positively connected to the crossbar
- With patented hook brake - quick adjustment and secure fixing of the hooks, at the push of a button
- Can be used as internal puller by repositioning the hooks
- Hydraulic spindle with hardened surface, wear resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
- Safety information: Controlled removal is only guaranteed when using a torque wrench
Technical Specifications
| Usable clamping reach [mm] | 140 mm |
|---|---|
| Clamping width a2 (min.) internal pulling [mm] | 270 mm |
| Clamping width a2 (max.) internal pulling [mm] | 640 mm |
| Width of hooked foot [mm] | 36 mm |
| Usable depth of hooked foot d2 [mm] | 28 mm |
| Thickness of hooked foot at tip | 6.5 mm |
| Tractive force (max.) [t] | 10 |
| reversible arms available | Yes |
| Net weight [kg] | 23.1 kg |
| Hook brake available | Yes |
| Spindle anti-slip device | Yes |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 580 mm |
| Total length [mm] | 137 mm |
| Tractive force (max.) [N] | 25.0 N |
| Hydraulic spindle | 1.06/HSP3 |
| Hydraulic spindle available | Yes |
| Clamping width (min.) external pulling [mm] | 150 mm |
