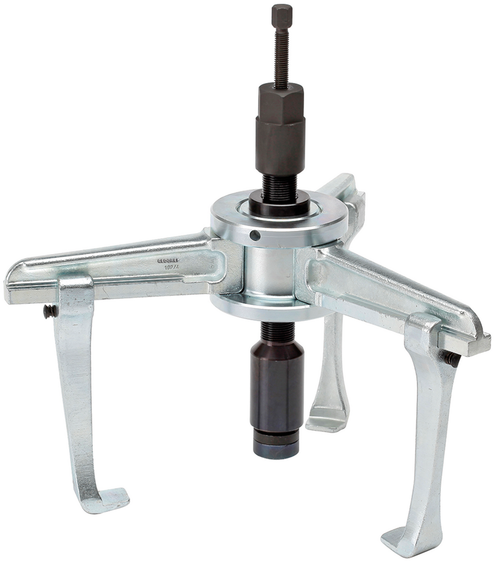

Product Overview
- Very strong
- Especially suitable for industry and for heavy agricultural and construction machinery
- The legs grip automatically
- With the hydraulic spindle, a controlled and safe pulling action is possible at all times
- Also available with standard spindle - Model 1.17
Technical Specifications
| Usable clamping reach [mm] | 295 mm |
|---|---|
| Width of hooked foot [mm] | 32 mm |
| Usable depth of hooked foot d2 [mm] | 22 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 41 mm |
| Tractive force (max.) [t] | 12 |
| Number of arms | 3 |
| Net weight [kg] | 12.65 kg |
| Can be retrofitted with hydraulic spindle | No |
| automatic pressing | Yes |
| Clamping width (max.) external pulling [mm] | 450 mm |
| Tractive force (max.) [N] | 29.0 N |
| Hydraulic spindle | 1.06/HSP3 |
| Hydraulic spindle available | Yes |
