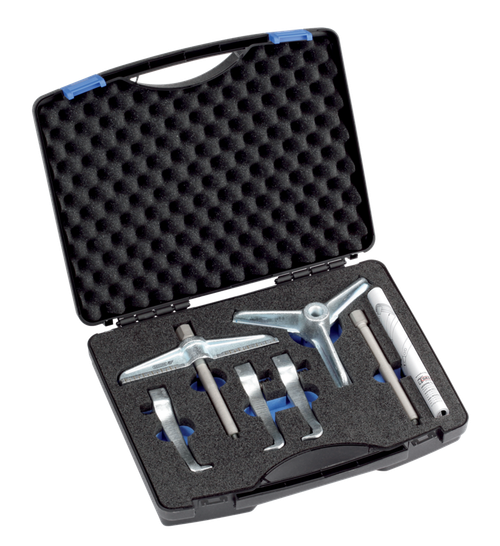

Product Overview
- Contents: 2 spindles
- 1 cross-beam each 2- and 3-arm pattern and 3 rigid legs with leg brake
- Prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Second spindle saves working time
Technical Specifications
| Usable clamping reach [mm] | 100 mm |
|---|---|
| Spindle thread size | M14x1,5 x 140 |
| Contents (Qty of pieces) | 6 |
| Width of hooked foot [mm] | 22 mm |
| Usable depth of hooked foot d2 [mm] | 15 mm |
| Thickness of hooked foot at tip | 3.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 3.0 |
| Net weight [kg] | 2.86 kg |
| Hook brake available | Yes |
| Hook can be moved parallel | Yes |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 140 mm |
| Type | in plastic case |
| Parts list (Text) | 106/1A03 Cross beam 2-arm 180 mm, 107/1A03 Cross beam 3-arm 180 mm, 106/A-100-B Pulling hook all steel, hook brake 100 mm (3x), E-1.1406140 Spindle 17, M14x1.5, 140 mm, 107/1A99-B Plastic case with foam inlay for 1.07/K-1A-B |
