Product Overview
- Tried and tested, strong design for removing discs, wheels, ball bearings etc.
- The wide or narrow hook ends, which can be used on both sides, press themselves automatically when loaded

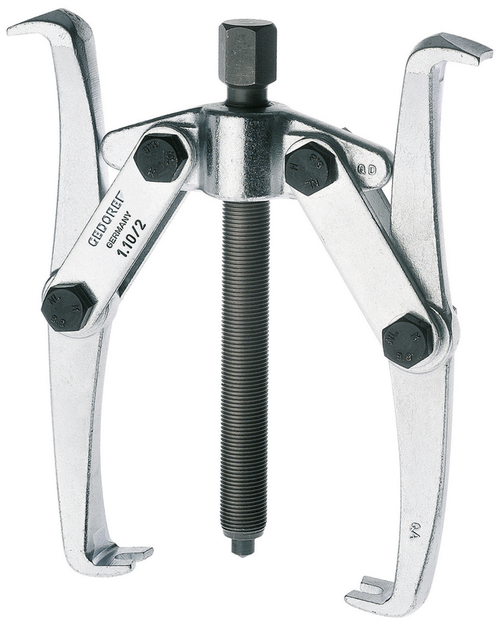

- The wide leg ends of the puller 1.10/2
- /4 and /5 possess 8 mm slots, so that pulleys or gears may also be pulled off using 8 mm bolts
Technical Specifications
| Usable clamping reach [mm] | 320 mm |
|---|---|
| Spindle thread size | G 1/2 x 350 |
| Width of hooked foot [mm] | 27 mm |
| Usable depth of hooked foot d2 [mm] | 27 mm |
| Thickness of hooked foot at tip | 6.5 mm |
| Width across flats [mm] | 22 mm |
| Tractive force (max.) [t] | 8 |
| Number of arms | 2 |
| Net weight [kg] | 5.8 kg |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 400 mm |
| Width of hooked foot | 32 mm |
| Hydraulic spindle optional | 1.06/HSP1 |
