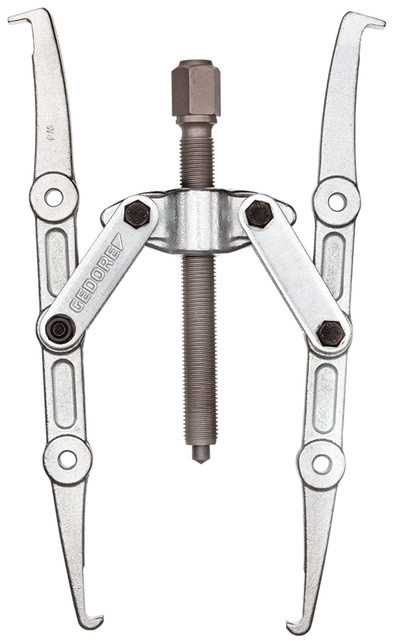

Product Overview
- Especially slim hooks, can be used on both sides, with triple adjustment of the clamping depth
- The wide or narrow hook ends, which can be used on both sides, press themselves automatically when loaded
Technical Specifications
| Spindle thread size | M 14x1,5 x 155 |
|---|---|
| Width of hooked foot [mm] | 6.6 mm |
| Usable depth of hooked foot d2 [mm] | 6 mm |
| Thickness of hooked foot at tip | 1.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 1.5 |
| Number of arms | 3 |
| Net weight [kg] | 1.43 kg |
| Can be retrofitted with hydraulic spindle | No |
| automatic pressing | Yes |
| reversible hooks | Yes |
| Clamping width (max.) external pulling [mm] | 150 mm |
| Width of hooked foot | 10 mm |
| Hook foot thickness at the tip 2 | 2 mm |
| Depth of hooked foot [mm] 3 | 10 mm |
| Total depth of hooked foot f2 [mm] | 16.5 mm |
| Usable clamping reach | 100-200 mm |
