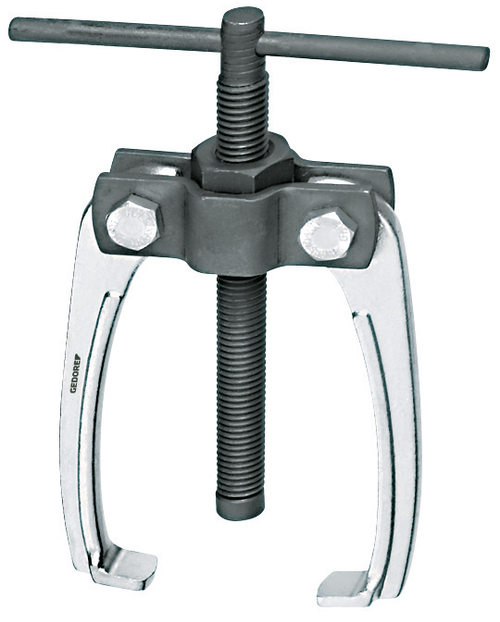

Product Overview
- The tried and tested range for economical bearing removal
Technical Specifications
| Usable clamping reach [mm] | 110 mm |
|---|---|
| Spindle thread size | M 14x1,5 x 163 |
| Width of hooked foot [mm] | 17 mm |
| Usable depth of hooked foot d2 [mm] | 18 mm |
| Thickness of hooked foot at tip | 5.0 mm |
| Width across flats [mm] | 17 mm |
| Tractive force (max.) [t] | 2 |
| Number of arms | 2 |
| Net weight [kg] | 1.05 kg |
| Can be retrofitted with hydraulic spindle | No |
| Clamping width (max.) external pulling [mm] | 110 mm |
| Hydraulic spindle optional | - |
