Product Overview

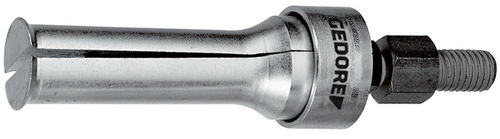

- For extremely-tightly-packed ball bearings, bearing races, bushings, and shaft seals Simmering
- Operation: The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace is then added. Both feet must be aligned parallel to the spindle to ensure rigidity.
- The design can vary from the image
- Can be used with either sliding hammer or counter-support brace
Technical Specifications
| Width across flats [mm] | 13 mm |
|---|---|
| Net weight [kg] | 0.39 kg |
| Total length [mm] | 135 mm |
| Total width [mm] | 35 mm |
| Total height [mm] | 35 mm |
| Spread range | 30-35 |
| Connecting thread | M10 |
| Slide Hammer | 1.35/2 |
| Support | 1.36/1 |
