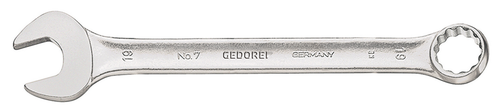

Product Overview
- With same size each end
- Satin non-glare finish
- Carefully forged and professionally machined
- Ring: cranked and 10° angled, with UD profile for gentle power transmission, from SW 1.3/8" 12-edge ring
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Slim ribbed open end for added strength guarantees maximum torques
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Net weight [kg] | 2.28 kg |
|---|---|
| Total length [mm] | 580 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 74.5 mm |
| Surface | chrome-plated |
| Head height 1 [mm] | 29.5 mm |
| Standard | similar to DIN 3113 - form B, ISO 3318, ISO 7738 |
| Weight | 5.030 lbs |
| Width across flats 1 [AF] | 2" |
| Width of head 2 [mm] | 103 mm |
| Head height 2 [mm] | 16 mm |
| Ring profile | bi-hex |
| Mouth position 1 | 15° |
| Height of offset 1 | 57 mm |
| Ring offset | 10° |
