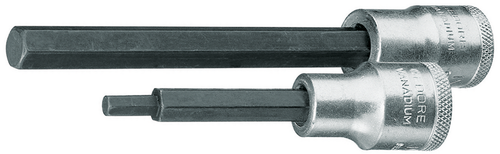

Product Overview
- Manually operated, with non-slip cross knurling
- GEDORE vanadium steel 31CrV3, polished, chrome-plated
Technical Specifications
| Net weight [kg] | 0.117 kg |
|---|---|
| Total length [mm] | 77 mm |
| Total width [mm] | 22.5 mm |
| Material | Chrome-vanadium steel |
| Surface | ground, chrome-plated |
| Width across flats 1 [mm] | 10 |
| Standard | DIN 3124, ISO 2725-1, DIN 3120 - C 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Ball Catching Cricket |
| Working length | 77.0 mm |
| Insert-Ø 1 | 15.5 mm |
| Insert-Ø 2 | 22.5 mm |
| Operating depth | 12.0 mm |
