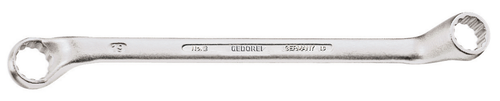

Product Overview
- Rings deep offset, strong but thin walls
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft, with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical Specifications
| Net weight [kg] | 1.207 kg |
|---|---|
| Total length [mm] | 455 mm |
| Total width [mm] | 62 mm |
| Total height [mm] | 49 mm |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 56.4 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 38 |
| Width across flats 2 [mm] | 42 |
| Head height 1 [mm] | 19.7 mm |
| Width across flats [mm] | 38x42 |
| Standard | not standardised |
| Width of head 2 [mm] | 62.5 mm |
| Head height 2 [mm] | 20.4 mm |
| Ring profile | UNIT-DRIVE |
| not standardised | * |
| Height of offset 1 | 40.4 mm |
| Ring offset | 5° |
