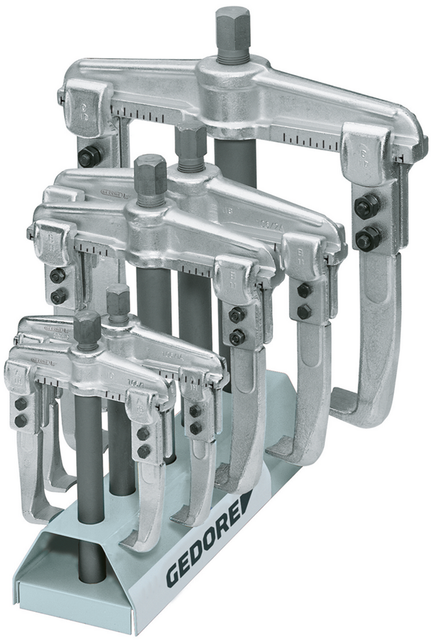

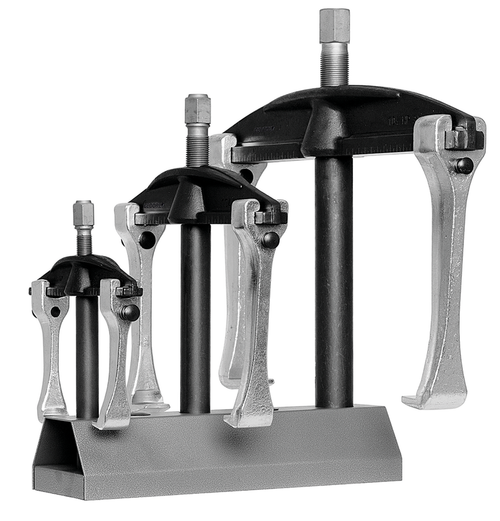

Product Overview
- Practical set of universal external pullers, internal pullers and cutting blades for numerous areas of application
- Wide range of pullers in one set - for delicate through to high-power use
- Check-Tool insert can be flexibly adjusted to the required size
- Safe and highly stressable, drop forged components
- External puller with innovative high power components for twice the load capacity
Technical Specifications
| Usable clamping reach [mm] | 330 mm |
|---|---|
| Contents (Qty of pieces) | 28 |
| Clamping width a2 (min.) internal pulling [mm] | 8 mm |
| Clamping width a2 (max.) internal pulling [mm] | 170 mm |
| Tractive force (max.) [t] | 5 |
| Net weight [kg] | 10.63 kg |
| Clamping width (max.) external pulling [mm] | 165 mm |
| Total length [mm] | 633 mm |
| Total width [mm] | 390 mm |
| Total height [mm] | 60 mm |
| Material | Foam |
| Clamping width (min.) external pulling [mm] | 5 mm |
| Parts list (Text) | 136 K-105 Chain grip wrench 105cm for max.Ø 33cm, 1.04/HP1A-B Puller HIGH POWER 2-arm span width 130 mm x span depth 100 mm, 106/A-100-VB Extension 100 mm with brake, 1.1406200 Spindle M14x1,5 x 200 mm, 1.18/0XS Puller 2-arm XS hooks span width 50mm |
| Target groups | Industry, Agriculture, Automotive, Workshop, Service, Mechanical engineering |
