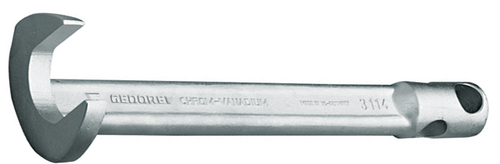

Product Overview
- Angled open-end wrench for working in hard-to-reach areas
- No. 3114 = Delivery without pivot pin
- No. DS 3114 = supplied with rotary pin 26 D
Technical Specifications
| Net weight [kg] | 1.034 kg |
|---|---|
| Total length [mm] | 315 mm |
| Use | For working in extremely difficult to access areas |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 68.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 36 |
| Head height 1 [mm] | 12.8 mm |
| Diameter 1 [mm] | 19.0 |
| Bore Ø [mm] | 19 mm |
| Shaft diameter | 31.5 mm |
| Tommy bar-Ø 1 | 18.00 mm |
| Recommended accessories | 26 D 18 Pivot pin 500 mm, Ø 18 mm |
