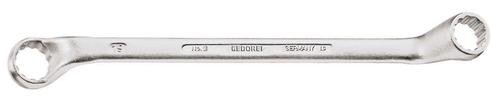

Product Overview
- Use: Heads 15° angled
- UD profile opening 15° offset
Technical Specifications
| Net weight [kg] | 0.1 kg |
|---|---|
| Total length [mm] | 170 mm |
| Total width [mm] | 29 mm |
| Total height [mm] | 15 mm |
| Use | Application on hydraulic/brake lines |
| Material | Chrome-vanadium steel 31CrV3 |
| Width of head 1 [mm] | 24.0 mm |
| Surface | chrome-plated |
| Width across flats 1 [mm] | 12 |
| Width across flats 2 [mm] | 14 |
| Head height 1 [mm] | 9.5 mm |
| Width across flats [mm] | 12x14 |
| Standard | DIN 3118 |
| Weight | 0.230 lbs |
| Width of head 2 [mm] | 28 mm |
| Head height 2 [mm] | 11.2 mm |
| Ring profile | hexagonal |
| Opening width 1 (min.) [mm] | 9.0 mm |
| Opening width 2 (max.) [mm] | 11.0 mm |
| Ring angle | 15° |
