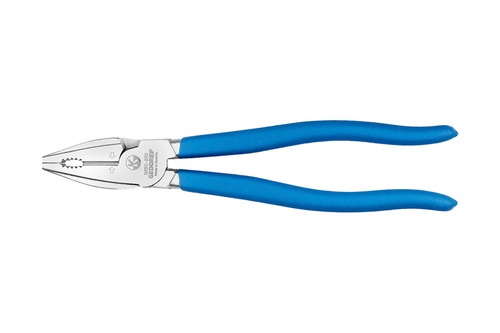

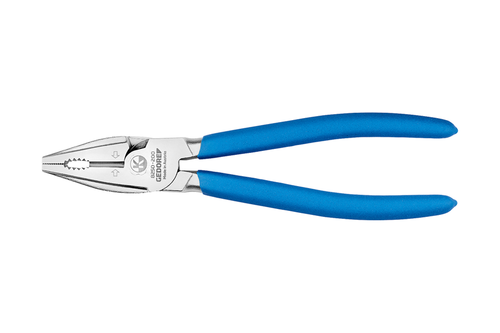

Product Overview
- For heavy continuous use
- High leverage for easier work
- For round and flat material
- For all wires, also hard wire/piano wire
- GEDORE special hardened and tempered steel, drop-forged, oil-hardened and annealed
- Forceps means 35% less effort
- Roughly toothed gripping surfaces for securely holding screws, pipes etc.
Technical Specifications
| Net weight [kg] | 0.18 kg |
|---|---|
| Total length [mm] | 162 mm |
| Total width [mm] | 49 mm |
| Total height [mm] | 14 mm |
| Material | Quenched and tempered steel |
| Width of head 1 [mm] | 22.8 mm |
| Surface | chrome-plated |
| Standard | DIN ISO 5746 |
| Handle design | dip-insulated |
| Handle colour | blue |
| Design non-sparking | No |
| Cutting values | Piano wire: 1,6 mm / 14 AWG, Hard wire: 2 mm / 12 AWG, Medium hard wire: 3,1 mm / 8 AWG, Soft wire: 4 mm / 6 AWG, Cu cable, multi wire cross section: 16 mm², Multi-wire cable Ø: 10 mm |
| Hardness of cutting edge | 62 - 64 HRC |
| Jaw length L3 [mm] | 35 mm |
| Joint types | inserted joint |
| Blade shape | with facet |
| Head thickness [mm] T1 | 10.4 mm |
| Jaw shape [mm] | flat jaws |
| Width of centres W4 [mm] | 5.8 mm |
| Thickness of point | 10.4 mm |
| with cutting edge | Yes |
| Hardening process | Induction hardened |
| Bevel | with |
