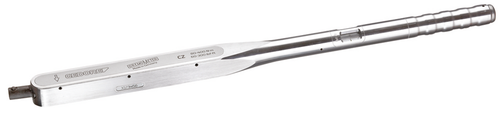

Product Overview
- Drive offers extensive range of accessories
- Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
- Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve
- Operation only with end fittings otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
- Extremely low wear attributable to reduced forces in a lever mechanism
- Forged lever chain from our group own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
Technical Specifications
| Net weight [kg] | 2.25 kg |
|---|---|
| Total length [mm] | 641 mm |
| Total width [mm] | 35 mm |
| Total height [mm] | 30 mm |
| Material | Aluminium alloy |
| Width of head 1 [mm] | 35.0 mm |
| Target groups | Automotive, Industry, Construction and commercial vehicles, Military, Energy, Mechanical engineering, Workshop, Utilities, Service, Railway, Agriculture, Oil & Gas |
| Head height 1 [mm] | 30 mm |
| Range of application | Assembly, Series assembly, Production, Maintenance and repair |
| Torque (max.) [Nm] | 400 Nm |
| Drive type/drive | Rectangular cavity |
| Torque (min.) [Nm] | 80 Nm |
| Torque (max.) [lbf·ft] | 300 lbf·ft |
| Precision +/- | +/- 3 % |
| Tightening direction | Left and right |
| Drive connector rectangular | 14 x 18 |
| Torque range (min./max.) [Nm] | 80 Nm - 400 Nm |
| Torque (min.) [lbf·ft] | 60 lbf·ft |
| Torque range (min./max.) [lbf·ft] | 60 lbf·ft - 300 lbf·ft |
| Trigger mechanism | Short path triggering |
| Test certificate | DIN EN ISO 6789-2:2017 |
| Backup | Locking pin |
| Depth gauge [metric] | 25.0 mm |
| Graduation [lbf·ft] | 5 lbf·ft |
| Insertion depth 1 | 25.0 mm |
| Scale division [Nm] | 5 Nm |
| Storage/Content | Plastic box |
| Graduation | 5 |
| Torque wrench type | C-SE |
| Calibration length | 582 mm |
| Lever length drive side [mm] | 53 mm |
| Lever length handle side [mm] | 588 mm |
| Distance housing - square drive | 16.5 mm |
