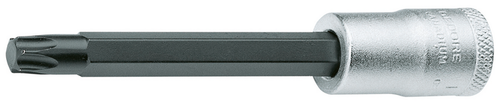

Product Overview
- Manually operated, with non-slip cross knurling
- Chromed
- With pressed-in pin in GEDORE vanadium special steel, gun-metal finish
Technical Specifications
| Net weight [kg] | 0.09 kg |
|---|---|
| Total length [mm] | 100 mm |
| Total width [mm] | 22.5 mm |
| Material | Chrome-vanadium steel |
| Surface | chrome-plated |
| Standard | DIN 3120 - C 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Screw size | M6 - M7 |
| Tip size TX (protrude) | TX 30 |
| Backup | Ball Catching Cricket |
| Tip length | 62.0 mm |
| Insert Ø Actuator | 22.5 mm |
