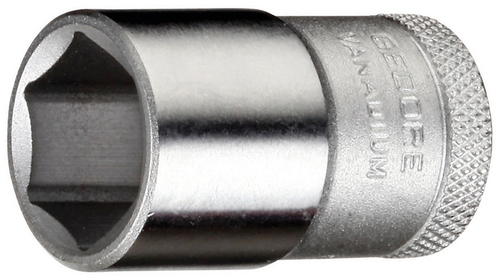

Product Overview
- * not standardised
Technical Specifications
| Net weight [kg] | 0.12 kg |
|---|---|
| Total length [mm] | 38 mm |
| Total width [mm] | 30 mm |
| Total height [mm] | 30 mm |
| Material | Steel |
| Surface | blued |
| Width across flats 1 [mm] | 19 |
| Standard | DIN 3129, ISO 2725-2, DIN 3121 - G 12,5, ISO 1174 |
| Drive mount, square [metric] | 12.5 mm |
| Drive connector square [inch] | 1/2" |
| Backup | Circlip and pin |
| Working length | 38.0 mm |
| Insert-Ø 1 | 27.5 mm |
| Insert-Ø 2 | 30.0 mm |
| Operating depth | 9.5 mm |
| Actuation type | machine-operated |
