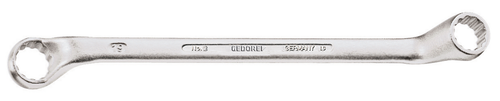

Product Overview
- 5° offset
- Thin walled rings
- Chromium vanadium steel
- Matt satin chrome-plated finish
Technical Specifications
| Net weight [kg] | 0.12 kg |
|---|---|
| Total length [mm] | 225 mm |
| Total width [mm] | 21 mm |
| Total height [mm] | 26 mm |
| Material | Chrome-vanadium steel |
| Width of head 1 [mm] | 19.5 mm |
| Surface | satin-matte chrome-plated |
| Width across flats 1 [mm] | 12 |
| Width across flats 2 [mm] | 13 mm |
| Head height 1 [mm] | 8.4 mm |
| Width across flats [mm] | 12 x 13 mm |
| Standard | DIN 838, ISO 3318, ISO 1085, ISO 10104 |
| Width of head 2 [mm] | 20.6 mm |
| Head height 2 [mm] | 9.1 mm |
| Height of offset 1 | 25 mm |
| Height of offset 2 | 25 mm |
