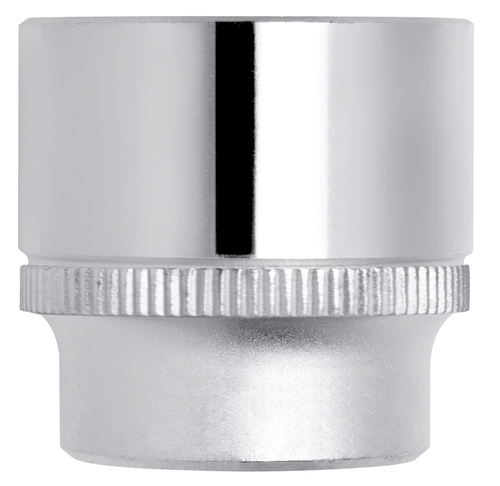

Product Overview
- Hand-operated, knurled grip
- Matt satin chrome-plated on the drive side, driven end brightly polished
- Chromium vanadium steel
Technical Specifications
| Net weight [kg] | 0.04 kg |
|---|---|
| Total length [mm] | 28 mm |
| Total width [mm] | 17 mm |
| Total height [mm] | 17 mm |
| Material | Chrome-vanadium steel |
| Surface | matte chrome (drive side), high-gloss polished (output side) |
| Width across flats 1 [mm] | 9 |
| Standard | DIN 3120 - C 10, DIN 3124, ISO 2725-1, ISO 1174 |
| Drive mount, square [metric] | 10.0 mm |
| Drive connector square [inch] | 3/8" |
| Backup | Ball Catching Cricket |
| Working length | 28.0 mm |
| Insert-Ø 1 | 13.2 mm |
| Insert-Ø 2 | 17.0 mm |
